F-16 FLCS Grip
Part # 100-F0-1003



F-16

Description

Aerotronics' F-16 flight grip is a dimensionally accurate metal investment casting of the real grip. It is populated with high-grade switches from the original equipment manufacturers, Otto engineering, Mason, and high fidelity simulation switches.

Durability

The F-16 flight grip needs to be incredibly durable because it is based upon a nearly inflexible force transducer.  The grip itself only moves a few millimeters, but controls the aircraft via pressure sensitive electrical interfaces.  Because of this configuration, the F-16 flight grip is subject to the highest torque pressures of any of the flight grips.  As our flight grips are used in centrifuges capable of producing 10 G's, durability is always a priority.

We have developed a special line of strong, reinforced aluminum investment cast flight grips that have welded threaded tail grip adapters so that they cannot come apart in flight.  In these tough environments, resin grips with bolted tail grip adapters simply cannot hold up.

Connector

- option of 15-Pin Grip connector, or flying leads, or your own connector
- Matrix pin out

>>Download Grips Spec Sheet

fam

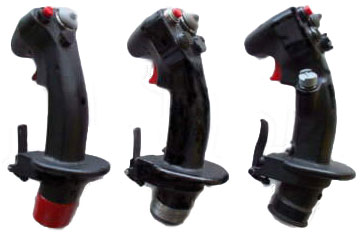

We can make any Block of the F-16. Here is part of the family.



50

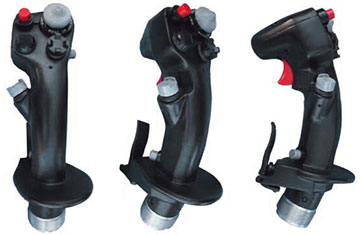

Here is a Series of Block 50.
