RWR  Radar Warning Receiver Scope
Simulation ALR-69 Radar Threat Warning Display for use in the F-16, A-10 and C-130

Features:

This RWR  solution is a replacement for the very expensive and unwieldy CRT based RWR scopes.  The standard CRT scopes extend 7.6” behind the main instrument panel and requires a large secondary Controller board and Electronics Unit to drive the CRT.  This wastes valuable space behind the instrument panel.  CRTs also consume significant power and give off lots of heat.

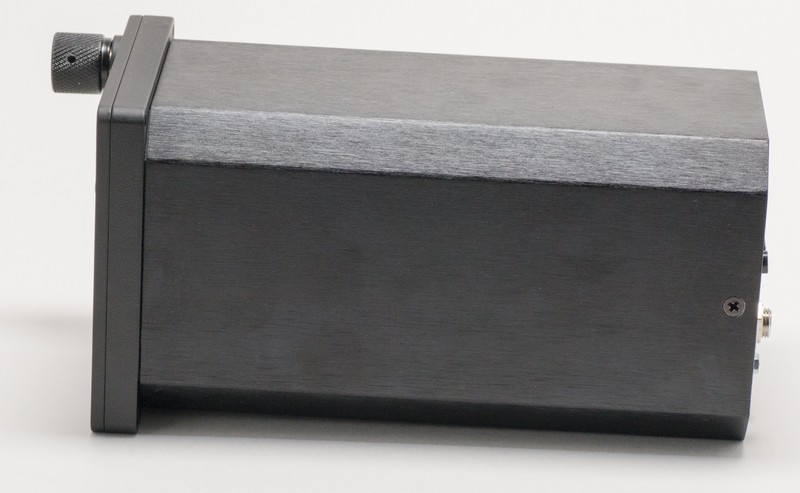

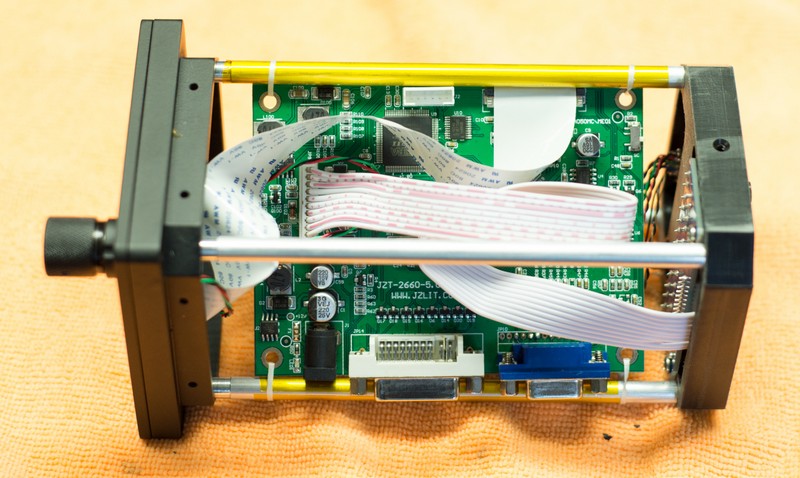

Our solution is a self-contained thin package that is about the thickness of just the bezel itelf.  It is about a ½” thick.  The LCD is bright and yet it generates very little heat when compared to the power hungry CRT.

The symbology can be displayed in green or multi colors, depending upon the block generation being simulated.

Specs:

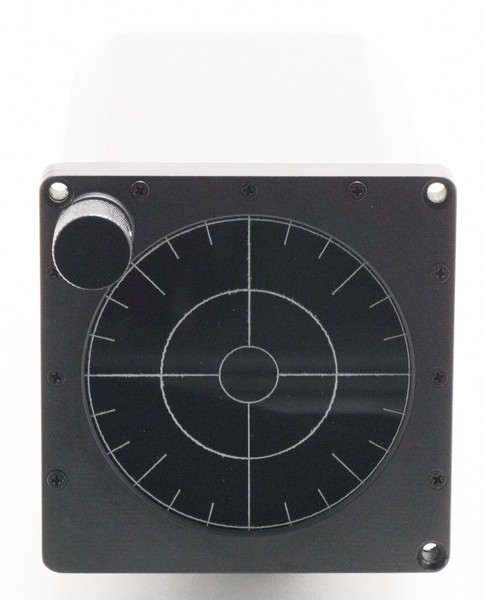

Bright 2.6” diameter Circular NVIS TFT display
Resolution: 480x480 pixels.

Milled aluminum black powder-coated bezel.

Option of NVIS Green or Color display (Non-NVIS)

Outside dimensions and mounting hole pattern of bezel is the same size as the original.

Functional Brightness Control knob: This dimensionally accurate knob turns a potentiometer for convenient brightness control.

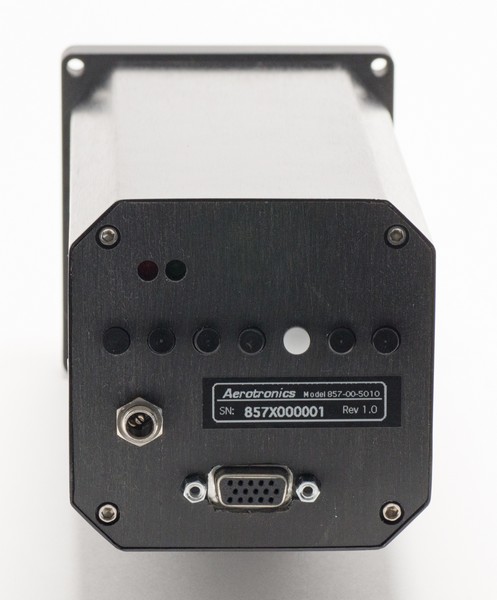

VGA display output. 12V adapter included.
